Integrate Wayground with Moodle via LTI as an Administrator

For Administrators

With Wayground integrated into Moodle through LTI, students can engage with Wayground resources directly within Moodle, reducing distractions from switching platforms. Teachers can easily assign resources and track progress — all without leaving the Moodle platform.

This article will demonstrate how you can set up this integration as an Administrator. Two major steps need to be completed during the setup:

• Getting the integration links from Wayground
• Completing the integration on Moodle

Note:

• This feature is available for users with Wayground Schools & Districts Plans.
• If you’ve previously set up the integration:
  • Installations done earlier may still show 'Quizizz LTI' as the tool name in Moodle. Make sure you delete the existing Quizizz LTI app from Moodle and install the 'Wayground LTI' app. This will update the tool name to 'Wayground LTI' and ensure a consistent experience.

Step 1: Getting the integration links from Wayground

1. Log in to Wayground

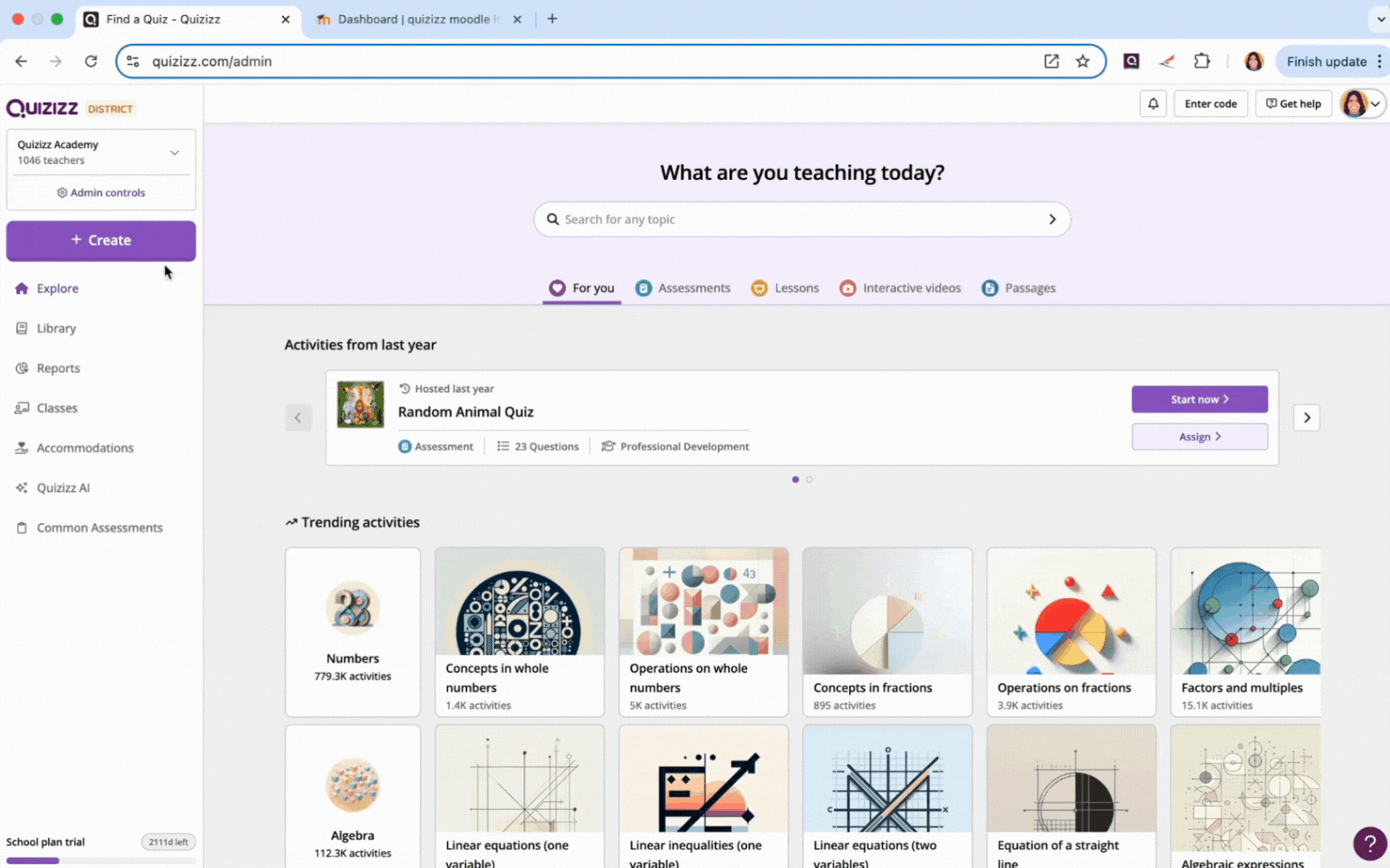

2. Click on the 'Admin Controls' button located in the top left of your screen, then select 'LMS Integrations'
3. Click on ‘Moodle’
4. Go to your Moodle account in a new browser window and copy the entire URL (exclude anything after .com)
5. Go back to Wayground, and paste the copied URL in the 'Enter your Moodle URL' field (exclude anything after ‘.com’)
6. Click on 'Generate integration'. This will generate the following links and details:
   1. Public Keyset
   2. Initiate Login URL
   3. Redirection URI(s)
   4. Custom parameters
7. Keep these credentials and links handy to complete the integration on Moodle

Step 2: Completing the integration on Moodle

1. Log in to your Moodle account

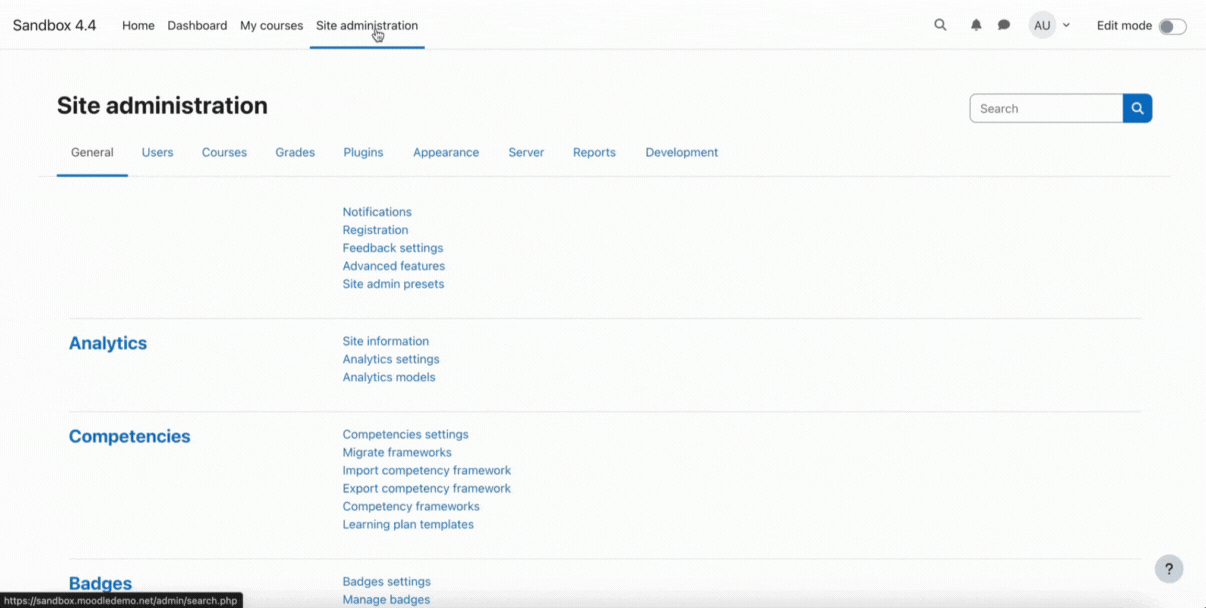

2. Go to your 'Site Administration' page
3. Click on 'Plugins'
4. Scroll down to the 'External Tools' section, and click on 'Manage Tools'




5. Click on 'Configure a tool manually'

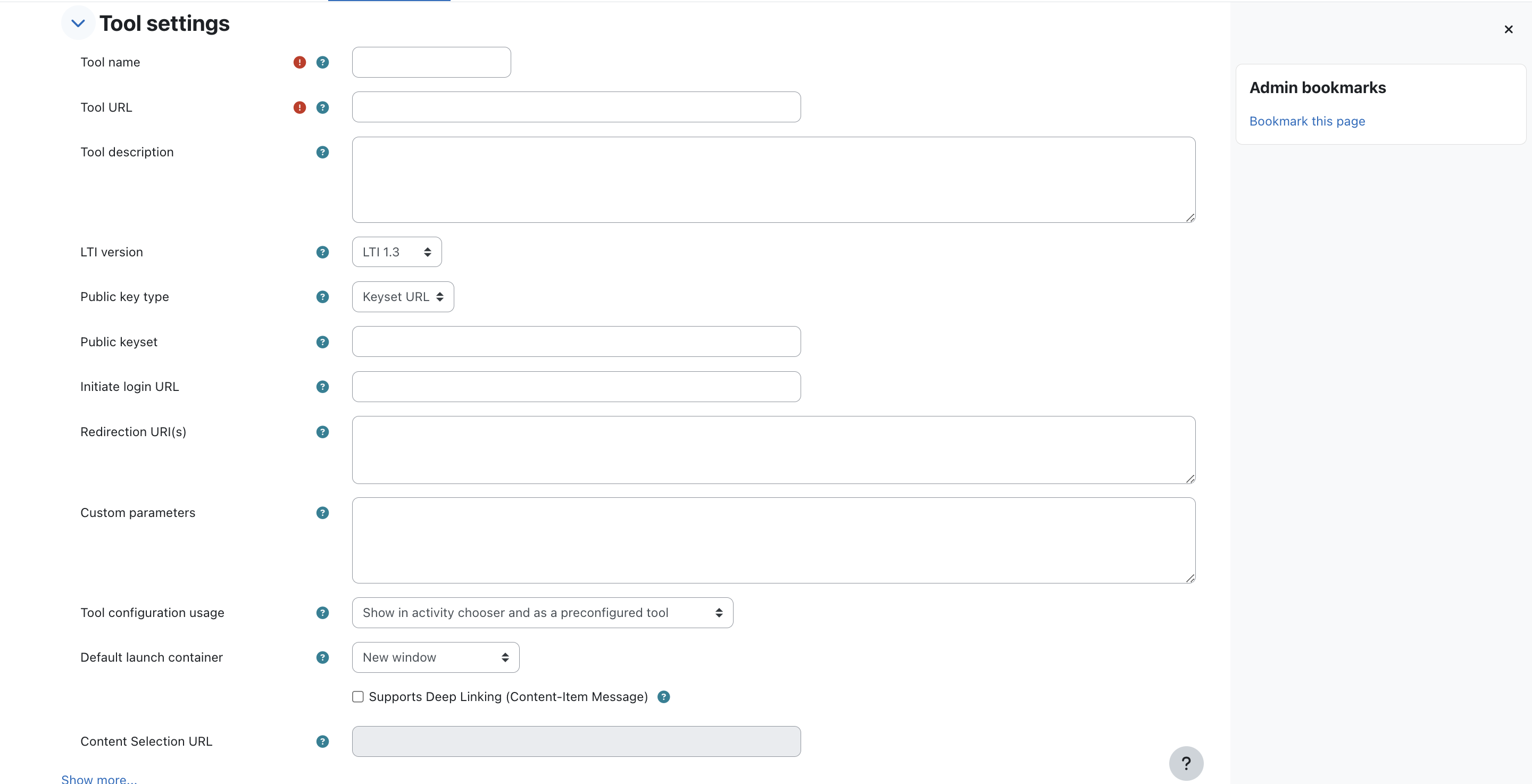

6. In the Tool settings section, enter or select information in the required fields as shown below:




   1. Tool Name: Enter the name of the tool (e.g., Wayground)
   2. Tool URL: Enter 'https://wayground.com/lti/moodle/callback'
   3. LTI Version: Select 'LTI 1.3' from the given options
   4. Public Key Type: Select 'Keyset URL'
   5. Public Keyset: Copy-paste the URL generated on Wayground (see step 1)
   6. Initiate Login URL:  Copy-paste the URL generated on Wayground (see step 1)
   7. Redirection URI(s): Copy-paste the details generated on Wayground (see step 1)
   8. Custom Parameters: Copy-paste the details generated on Wayground (see step 1)
   9. Tool Configuration Usage: Select 'Show in activity chooser and as a preconfigured tool' from the given options
   10. Default Launch Container: Select 'New window' from the given options
   11. Check () the 'Supports Deep Linking (Content-Item Message)' option

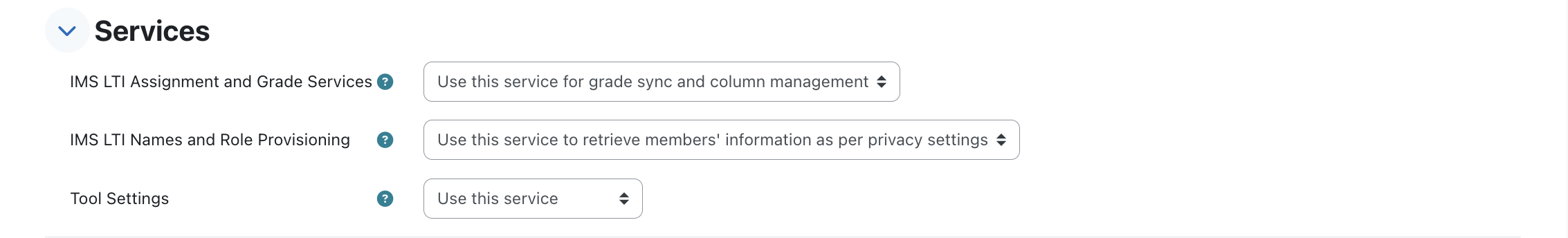

7. Now, scroll down to click on 'Services', and enter or select information in the required fields as shown below:




   1. IMS LTI Assignment and Grade Services: Select 'Use this service for grade-sync only' or 'Use this service for grade-sync or column management', depending on your requirements
   2. IMS LTI Names and Role Provisioning: Select the option 'Use this service to retrieve members information as per privacy settings'
   3. Tool Settings: Select the 'Use this service' option

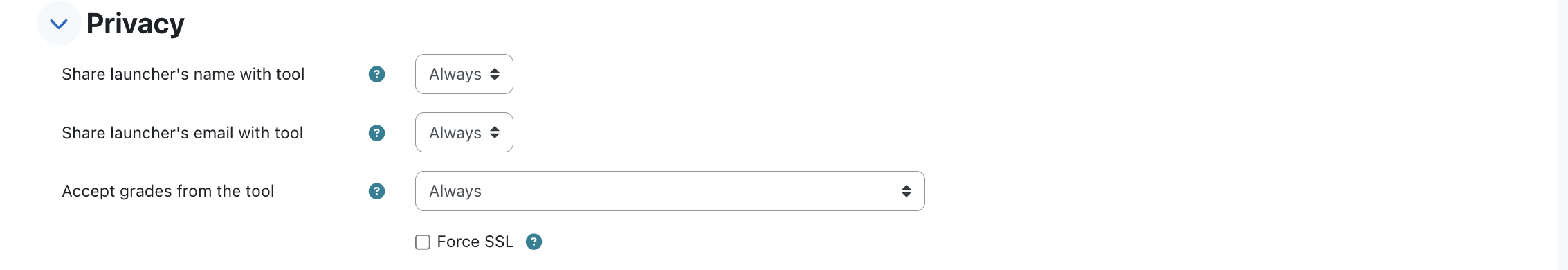

8. Scroll down to click on 'Privacy', and enter or select information in the required fields as shown below:




   1. Share launcher's name with tool: Select 'Always'
   2. Accept grades from the tool: Select 'Always' or 'As specified in Deep Linking definition or Delegate to teacher', depending on your requirements
9. Once you've entered/selected the required credentials as mentioned above, click on the 'Save Changes' button

The Wayground LTI tool will now be successfully embedded in your Moodle account! To verify this:

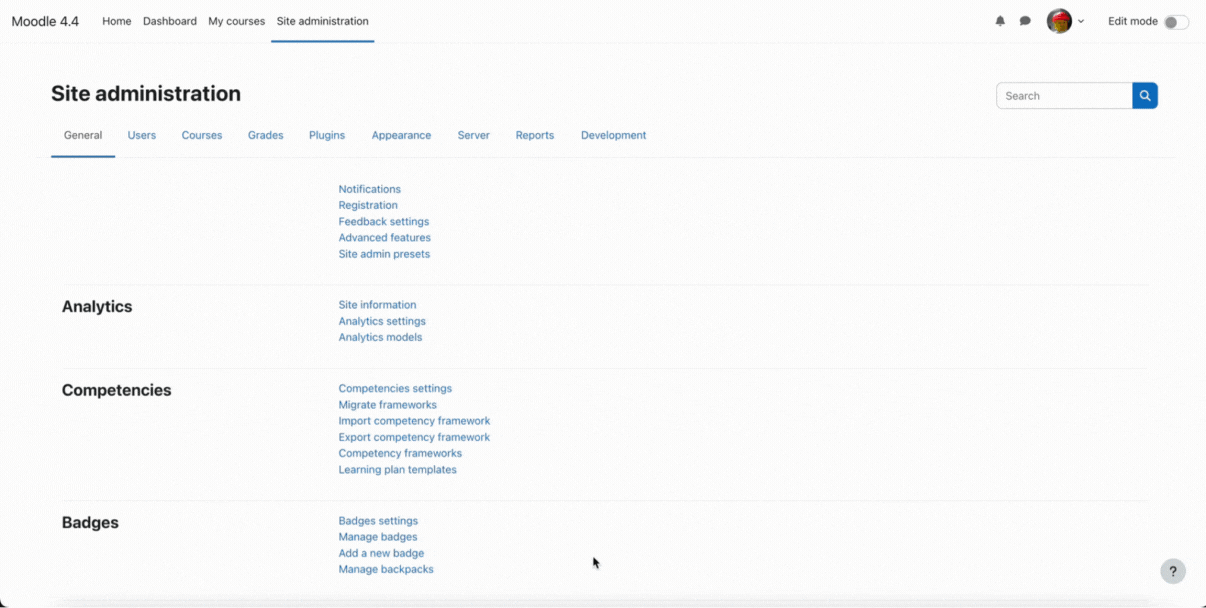

1. Go to your 'Site Administration' page
2. Click on 'Plugins'
3. Scroll down to the 'External Tools' section, and click on 'Manage Tools'




4. Scroll down to the 'Tools' section, and you'll find the 'Wayground' tool among the list of LTI tools embedded with Moodle

For teachers to be able to assign activities to a Moodle course, they/you need to ensure that the Wayground LTI tool is enabled for that course. To do this:

1. Go to the 'My courses' page on Moodle
2. Select the required course
3. Once the course page opens, click on 'More' and select 'LTI External Tools' from the drop-down menu




4. Now, you should see 'Wayground' as an LTI external tool. Make sure that the 'Show in activity chooser' option is toggled on ()

Important

• Only teachers rostered on Wayground as part of your Wayground Schools & District plans can use the Wayground–Moodle LTI integration. Teachers not rostered and attempting to link a Wayground resource to a Moodle course will receive a message prompting them to get rostered on their Wayground plan to access the Moodle integration.
• If you’ve previously set up the integration:
  • Installations done earlier may still show 'Quizizz LTI' as the tool name in Moodle. Make sure you delete the existing Quizizz LTI app from Moodle and install the 'Wayground LTI' app. This will update the tool name to 'Wayground LTI' and ensure a consistent experience.
